Single-User & Home-Lab Setup Guide

This guide details how to install, configure, and operate Model Context Gateway (MCG) for single users, home-lab enthusiasts, and local AI developers. It explains how to bypass external SSO complexity using standalone subnet trust, connect local LLMs (Ollama, LM Studio), and securely route tools to AI coding assistants.

---

🏛️ Homelab Architectural Topology

In a home-lab or single-user environment, MCG operates with zero external dependencies. SQLite provides embedded state storage, AES-256-GCM protects secrets with an auto-generated key, and local subnets enjoy instant administrator access.

---

⚡ 60-Second Quickstart

Launch Model Context Gateway in your home-lab with a single Docker Compose file:

1. Create docker-compose.yml

services:
  mcg:
    image: ghcr.io/spelech/model-context-gateway:latest
    container_name: mcg
    restart: unless-stopped
    ports:
      - "8080:8080"
    environment:
      # Grant full admin access to loopback and your home LAN subnets
      - STANDALONE_ALLOWED_NETWORKS=127.0.0.1,::1,192.168.0.0/16,10.0.0.0/8
    volumes:
      - ./data:/app/data
      - /var/run/docker.sock:/var/run/docker.sock

2. Start the Gateway

docker compose up -d

3. Retrieve Your Bootstrap Keys

On initial startup, MCG automatically provisions the SQLite database, encrypts its tables, and outputs bootstrap keys to the ./data folder:

# General tool calling key for AI clients (Cursor, Claude, Cline, Windsurf)
cat ./data/.client.key
# -> mcp-glb-R4t8W1yU-9pM2nQ6sD8fH3jK5

# Administrator key for gateway management and AI agent automation (/admin)
cat ./data/.admin.key
# -> mcp-adm-Xk9L2mPq-7vN3wZ8aB1cE4fG9

4. Open the Web Dashboard

Navigate to http://localhost:8080/ (or your home-lab server IP, e.g. http://192.168.1.50:8080/). Because your IP falls within STANDALONE_ALLOWED_NETWORKS, the dashboard opens immediately with full administrative privileges without asking for credentials.

---

🛡️ Standalone Mode & Subnet Bypass (STANDALONE_ALLOWED_NETWORKS)

In corporate environments, MCG integrates with Active Directory, Authentik, or Keycloak. In a home-lab, setting up OAuth/OIDC can be unnecessary overhead.

How Standalone Mode Works

When no external Identity Provider (LDAP or OIDC forward-auth) is enabled, MCG activates Standalone Mode:

• Any HTTP request originating from 127.0.0.1, ::1, or any CIDR subnet defined in STANDALONE_ALLOWED_NETWORKS is automatically authenticated as Administrator (admin).
• Requests from outside these subnets must provide a valid Authorization: Bearer <appkey> header.
• You can specify comma-separated IPv4 and IPv6 subnets:

  STANDALONE_ALLOWED_NETWORKS=127.0.0.1,::1,192.168.1.0/24,10.10.0.0/16

---

🔑 AppKey Scoping & Granular Permissions

Even in a single-user home-lab, restricting what each AI assistant can do protects your local system from runaway scripts or unintended tool execution.

Scope Syntax & Best Practices

Scope Type	Example Syntax	Description	Best For
Global Access	all or *	Full unrestricted access to all backend servers and tools	Claude Desktop, Antigravity, trusted personal CLI
Server Scoped	server:docker, server:postgres	Restricts access to one specific backend server	Cursor, VS Code / Cline
Category Scoped	category:devops, category:media	Restricts access to servers tagged with that category	Specialized AI assistants (e.g. Home Assistant agent)
Tool Scoped	tool:docker__list_containers	Restricts access to a single specific tool	Scripts, cron jobs, and webhooks
Capability Scoped	resources:read, prompts:read	Read-only context lookup without tool execution rights	Documentation lookup assistants
System Admin	admin	Full gateway configuration via Admin MCP Server (/admin)	Autonomous admin assistants

Provisioning AppKeys

You can create and manage AppKeys using three convenient methods:

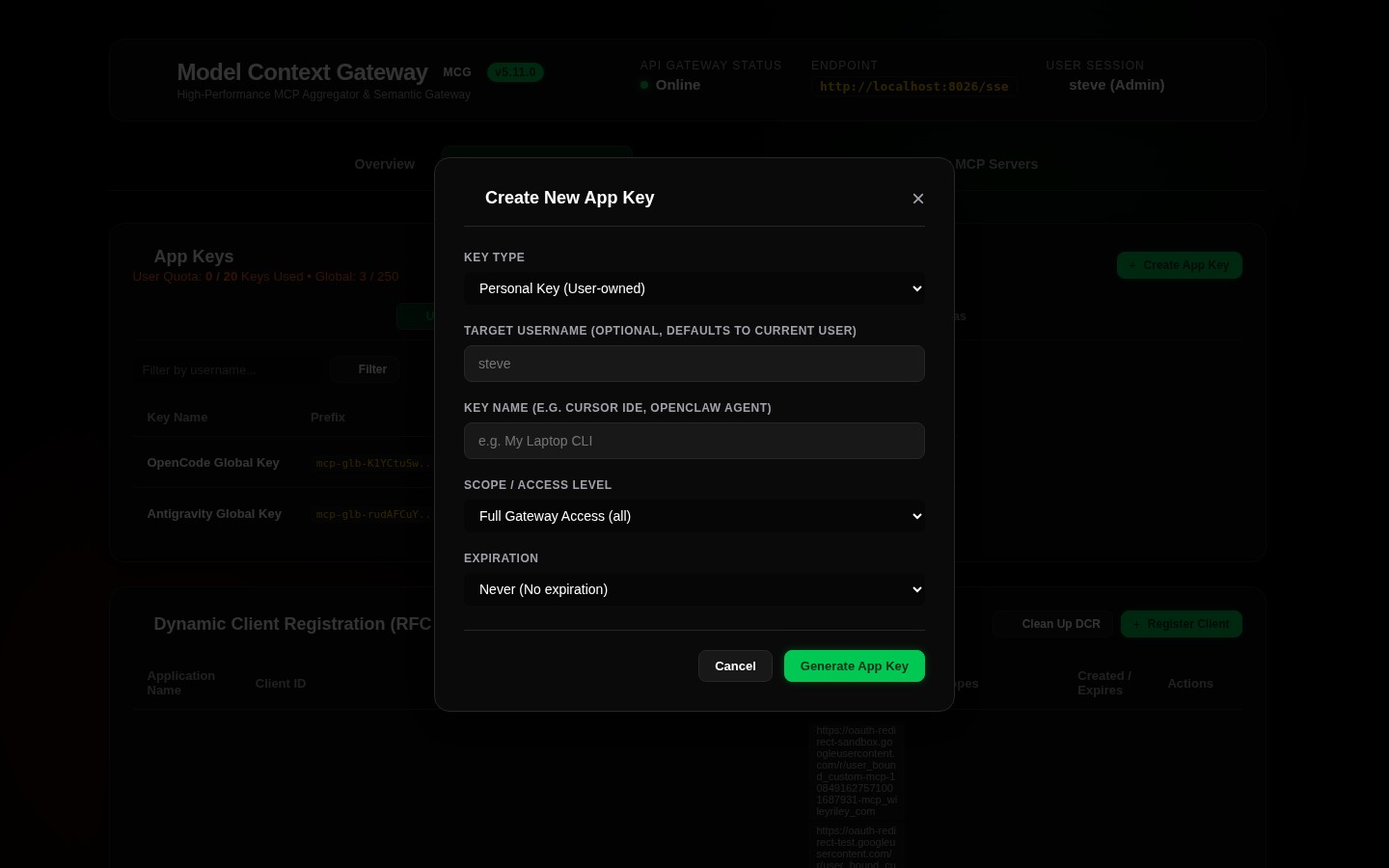

Option A: Web Dashboard

1. Open http://localhost:8080/ and click App Keys & Security.
2. Click + Generate App Key.
3. Enter a name (e.g., Cursor - Docker Only), choose a scope (server:docker), and click Generate Key.
4. Copy the generated secret key (it is shown only once).

Option B: Pre-Seeding via Environment Variable

Pre-seed multiple keys at container startup using MCG_CLIENT_APP_KEYS:

MCG_CLIENT_APP_KEYS=mcp-glb-claudeFull123:ClaudeDesktop:all,mcp-srv-cursorDocker456:Cursor:server:docker,mcp-grp-openWebUI789:OpenWebUI:category:media

Option C: AI Agent Tool Call (manage_appkeys)

AI coding agents connected to /admin can invoke the manage_appkeys tool directly:

{
  "action": "create",
  "name": "Cline Key",
  "scopes": ["server:filesystem", "server:git"]
}

---

🔒 Built-in SQLite AES-256-GCM Secret Storage

Model Context Gateway eliminates the need to run an external HashiCorp Vault instance for home-lab deployments:

• Zero External Dependencies: All credentials entered in the dashboard (Plex tokens, GitHub PATs, Docker socket credentials) are encrypted at rest in SQLite.
• AES-256-GCM Envelope Encryption: MCG uses an auto-generated 256-bit key saved to ./data/.master.key (with chmod 0600 permissions).
• Just-In-Time Header Injection: MCG holds credentials encrypted until an AI client executes a tool. It then decrypts the key in memory and injects it into the outbound request, shielding credentials from the client LLM.

---

💻 AI Client Configuration Snippets

Add these configuration blocks to your AI client configuration files, replacing the bearer key with the value from ./data/.client.key:

1. Claude Desktop (claude_desktop_config.json)

{
  "mcpServers": {
    "mcg": {
      "command": "npx",
      "args": ["-y", "@modelcontextprotocol/client-sse", "http://localhost:8080/sse"],
      "env": {
        "Authorization": "Bearer mcp-glb-R4t8W1yU-9pM2nQ6sD8fH3jK5"
      }
    }
  }
}

2. Cursor (.cursor/mcp.json)

{
  "mcpServers": {
    "mcg": {
      "url": "http://localhost:8080/sse",
      "headers": {
        "Authorization": "Bearer mcp-glb-R4t8W1yU-9pM2nQ6sD8fH3jK5"
      }
    }
  }
}

3. VS Code / Cline / Roo-Code (cline_mcp_settings.json)

{
  "mcpServers": {
    "mcg": {
      "url": "http://localhost:8080/sse",
      "transport": "sse",
      "headers": {
        "Authorization": "Bearer mcp-glb-R4t8W1yU-9pM2nQ6sD8fH3jK5"
      }
    }
  }
}

4. Windsurf (mcp_config.json)

{
  "mcpServers": {
    "mcg": {
      "serverUrl": "http://localhost:8080/sse",
      "headers": {
        "Authorization": "Bearer mcp-glb-R4t8W1yU-9pM2nQ6sD8fH3jK5"
      }
    }
  }
}

5. Autonomous Admin Agent (Admin MCP Server)

To grant an autonomous agent (such as Antigravity) administrative authority over MCG:

{
  "mcpServers": {
    "mcg-admin": {
      "url": "http://localhost:8080/admin/sse",
      "headers": {
        "Authorization": "Bearer mcp-adm-Xk9L2mPq-7vN3wZ8aB1cE4fG9"
      }
    }
  }
}

---

🦙 Local LLM Integrations (Ollama, LM Studio, Open WebUI)

MCG works seamlessly with locally hosted Large Language Models running on your home-lab hardware:

1. Ollama Tool Calling

Modern Ollama models (such as llama3.1, qwen2.5, mistral-nemo) support native function calling. You can bridge Ollama to MCG using Open WebUI or an MCP proxy bridge:

• Point Open WebUI or your LangChain/LlamaIndex script to Ollama (http://localhost:11434/v1).
• Configure Open WebUI Tools / MCP integrations to connect to http://mcg:8080/sse with your mcp-glb-... AppKey.

2. LM Studio

LM Studio provides an OpenAI-compatible local server (http://localhost:1234/v1):

• Start an MCP-compatible agent frontend (e.g. Chatbox, LibreChat, or Open WebUI).
• Point the LLM endpoint to LM Studio and the Tool/MCP endpoint to http://localhost:8080/sse.
• The local model issues standard search_tools and execute_tool calls through MCG Meta-Mode, dynamically searching and calling all home-lab tools.

3. Open WebUI Native Tool Integration

In Open WebUI:

1. Navigate to Admin Settings -> Tools -> Add Tool.
2. Select MCP (Model Context Protocol).
3. Enter Server URL: http://mcg:8080/sse.
4. Enter Custom Headers: {"Authorization": "Bearer mcp-glb-..."}.
5. Open WebUI now exposes your home-lab tool suite to all local chat sessions.

---

🐳 Homelab Docker MCP Auto-Discovery

When you mount /var/run/docker.sock:/var/run/docker.sock in your MCG container, MCG automatically discovers and registers companion containers on your Docker host:

services:
  # Example: PostgreSQL Database MCP Server
  postgres-mcp:
    image: cschreib/postgres-mcp:latest
    container_name: postgres-mcp
    restart: unless-stopped
    labels:
      - "mcp.enabled=true"
      - "mcp.name=PostgreSQL Database"
      - "mcp.category=databases"
    environment:
      - DATABASE_URL=postgresql://user:pass@db:5432/mydb

1. MCG watches the Docker socket for container lifecycle events.
2. When a container with mcp.enabled=true starts, MCG inspects its exposed ports and registers its HTTP/SSE tools automatically.
3. Your connected AI clients immediately discover the new database tools via search_tools without restarting MCG or editing configuration files.
